1-1/4" Aluminum Sign Brace (ASB125)
Adjust-A-Sign Aluminum Brace System
MASH-16 compliant adjustable bracing and brackets for ground-mounted sign support systems.
Aluminum Sign Braces
Xcessories Squared manufactures several MASH-16-compliant Adjust-A-Sign aluminum sign braces that provide additional support to the flat sign panels. Available in multiple profiles, state DOTs typically select one or two profiles to meet their needs.

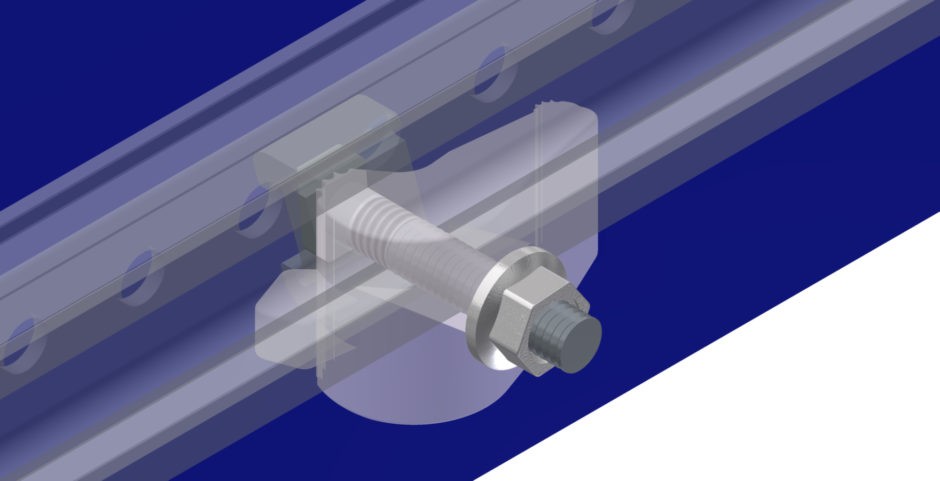

Brackets

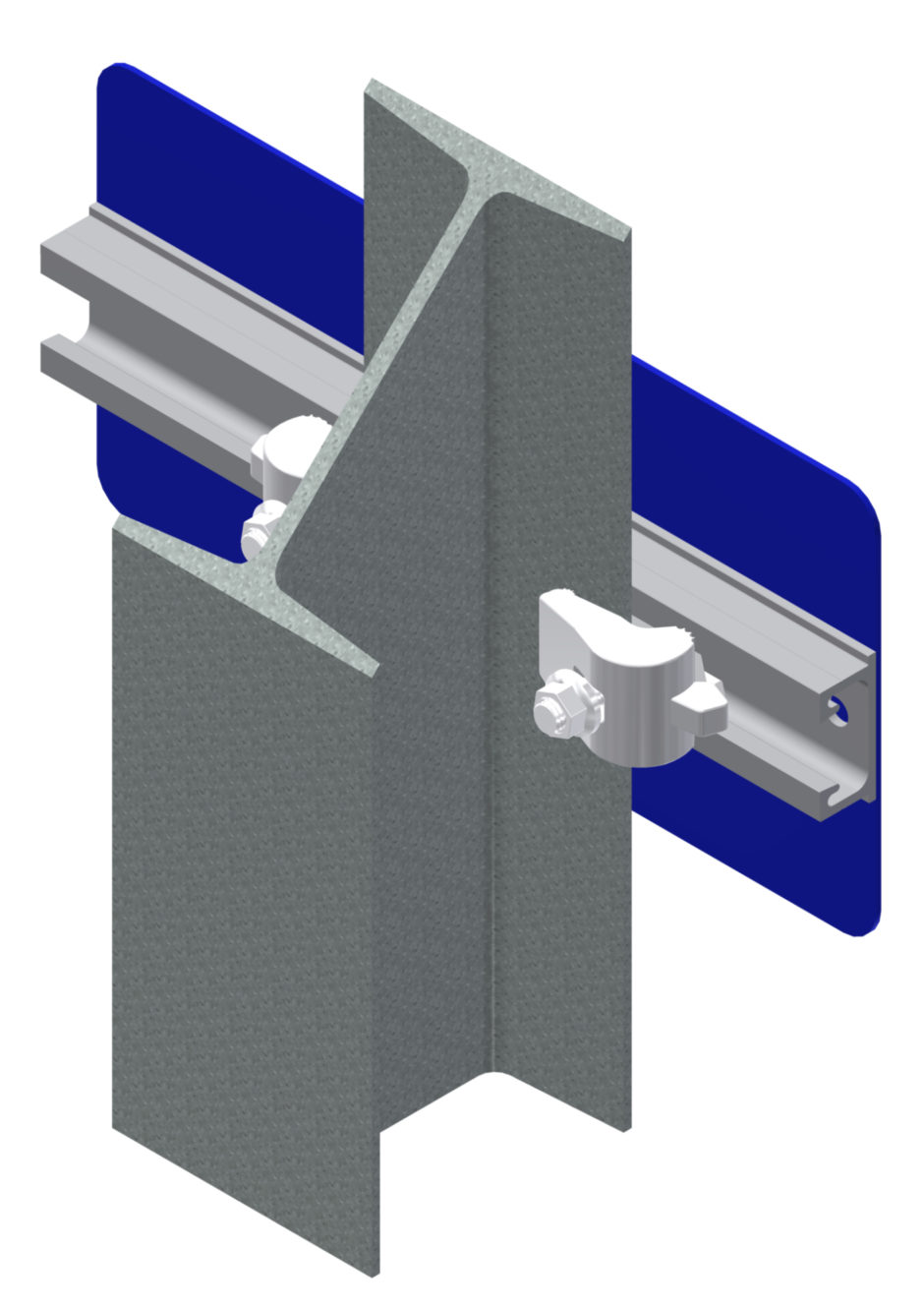

We manufacture several brackets that fit standard extruded panel signs and all of our aluminum sign braces. Our brackets also fit most sizes of square, round, and W-beam sign posts. Each sign bracket can hold up to 10 sq.-ft. of sign area. All of our brackets are designed to be easily installed directly into the sign brace channels or extruded panel channels.
Sign Drive Rivets
Xcessories Squared provides several types of sign drive rivets; many are available in common sign panel colors.

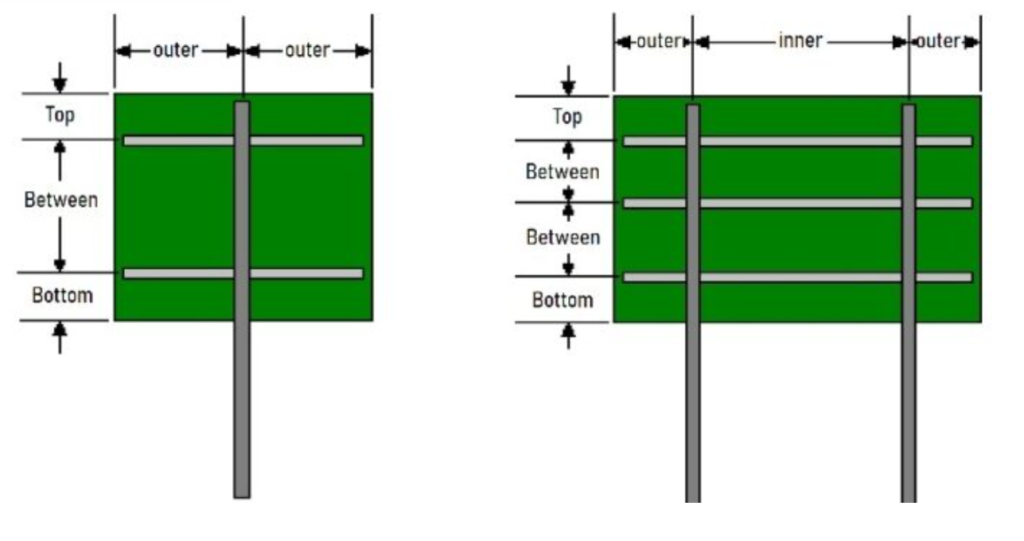

Maximum Vertical Space of Aluminum Bracing
1 Post (50-50%)
| Sign Width | Top/Bottom | Between |
|---|---|---|
| 4' | 12" | 36" |
| 6' | 12" | 36" |
| 8' | n/a | n/a |
| 10' | n/a | n/a |
| 12' | n/a | n/a |
| 14' | n/a | n/a |
| 16' | n/a | n/a |
2 Posts (20-60-20%)
| Sign Width | Top/Bottom | Between |
|---|---|---|
| 4' | n/a | n/a |
| 6' | 12" | 36" |
| 8' | 12" | 36" |
| 10' | 12" | 36" |
| 12' | 12" | 28" |
| 14' | 10" | 20" |
| 16' | 7" | 15" |
3 Posts (15-35-35-15%)
| Sign Width | Top/Bottom | Between |
|---|---|---|
| 4' | n/a | n/a |
| 6' | n/a | n/a |
| 8' | 12" | 36" |
| 10' | 12" | 36" |
| 12' | 12" | 36" |
| 14' | 12" | 36" |
| 16' | 12" | 36" |
NOTE: Aluminum sign braces have standard lengths of 12' and 24'.
Product Details
Model: 425
Regulatory Compliance: MASH-16 Compliant
Extruded Panel Post Clamp Sets
Sign Brace Flat Panel Post Clamp Sets
