Redi-Torque

The Redi-Torque System is a MASH-compliant ground-mounted slip base sign assembly.

X2 header redi torque 940x500

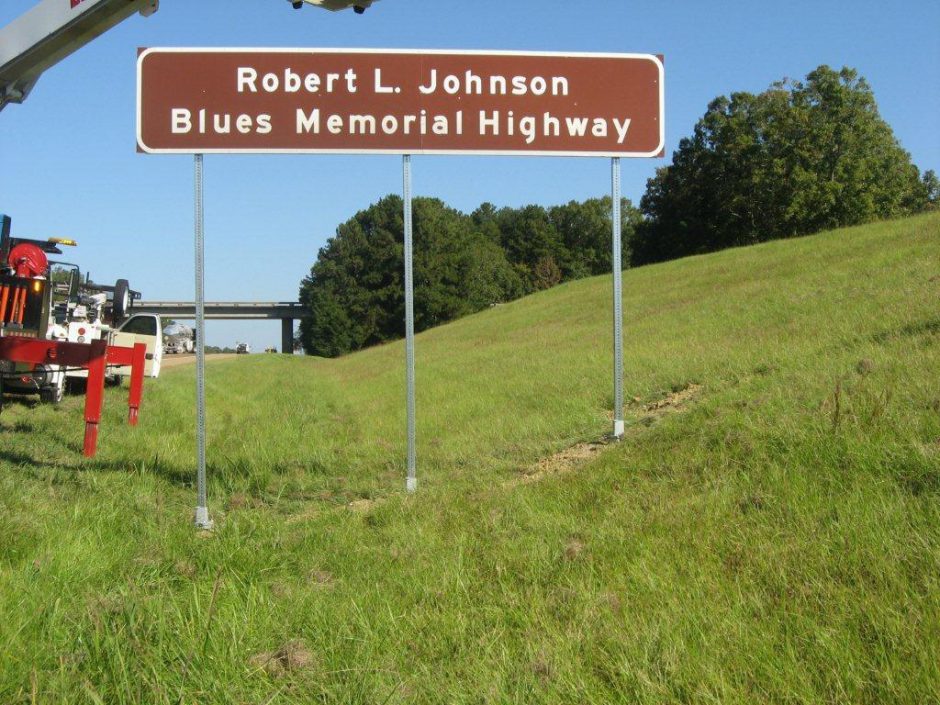

Redi Torque 3 leg

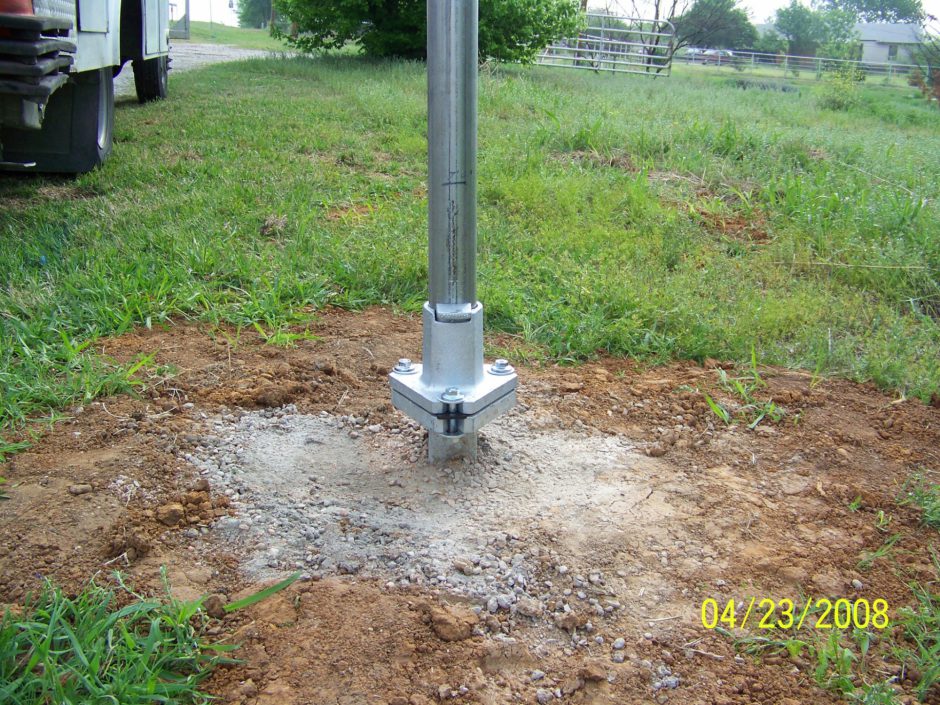

Redi Torque round

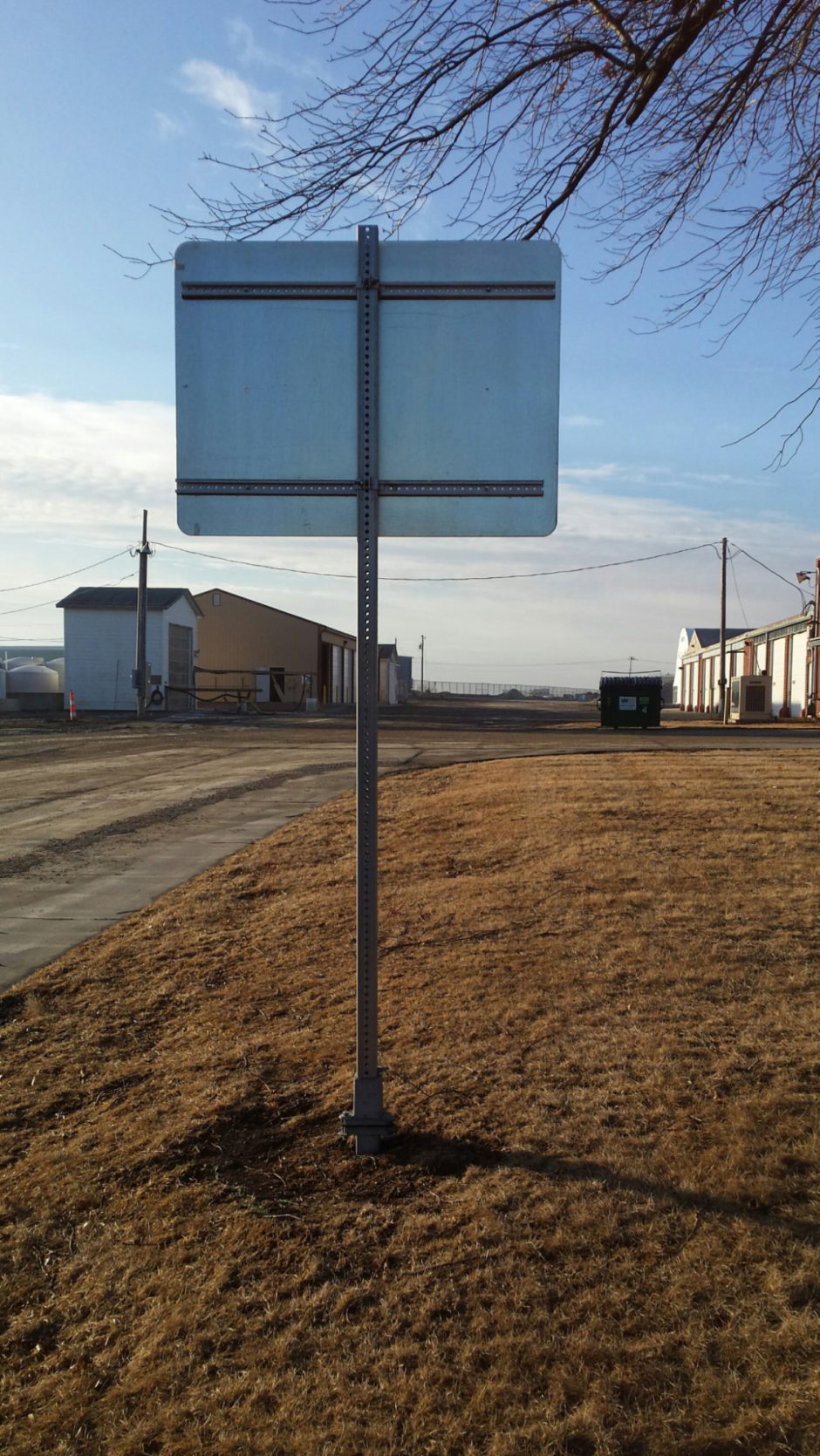

Redi Torque 1 leg back

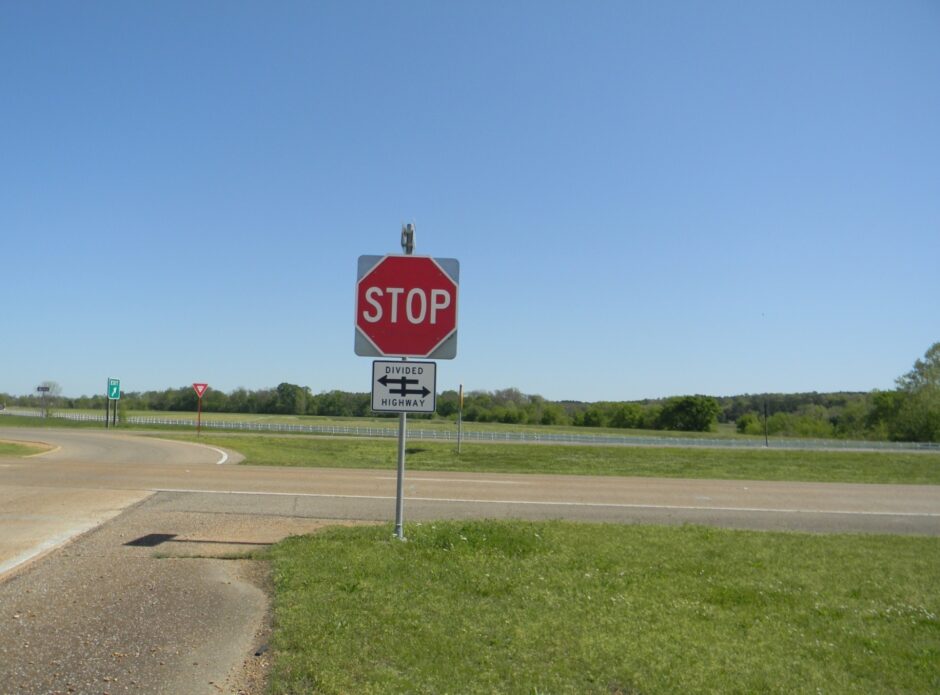

Mississippi redi torque round

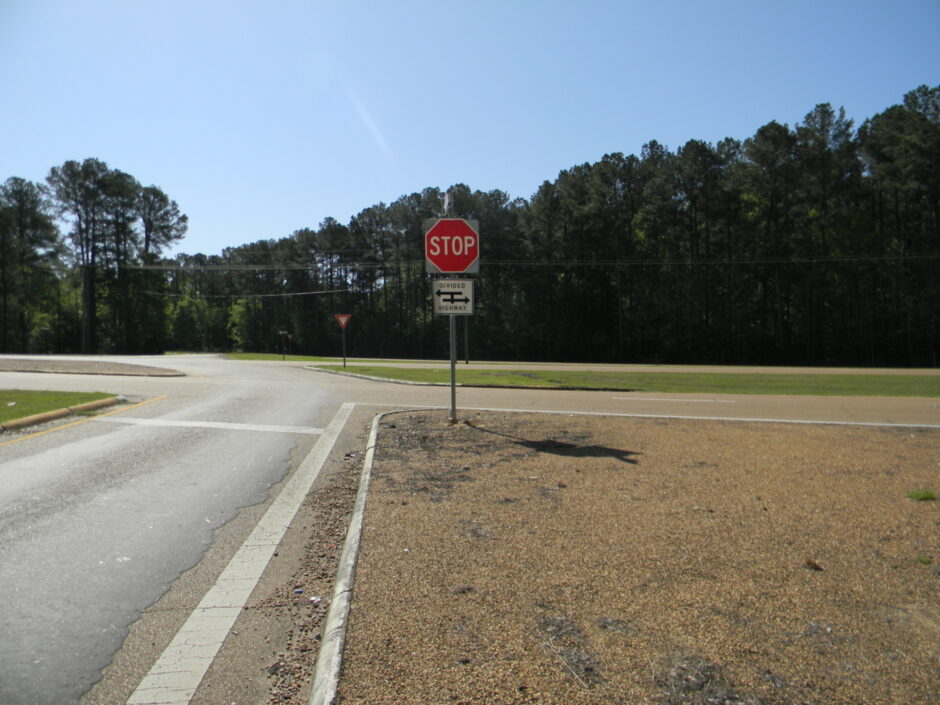

Redi torque mississippi

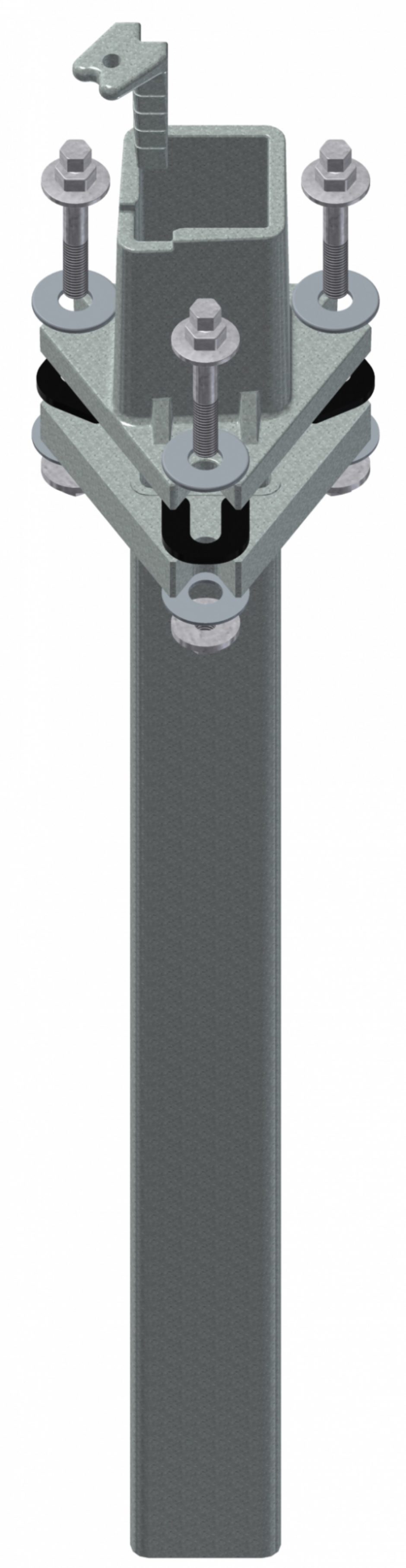

RT8 CTA

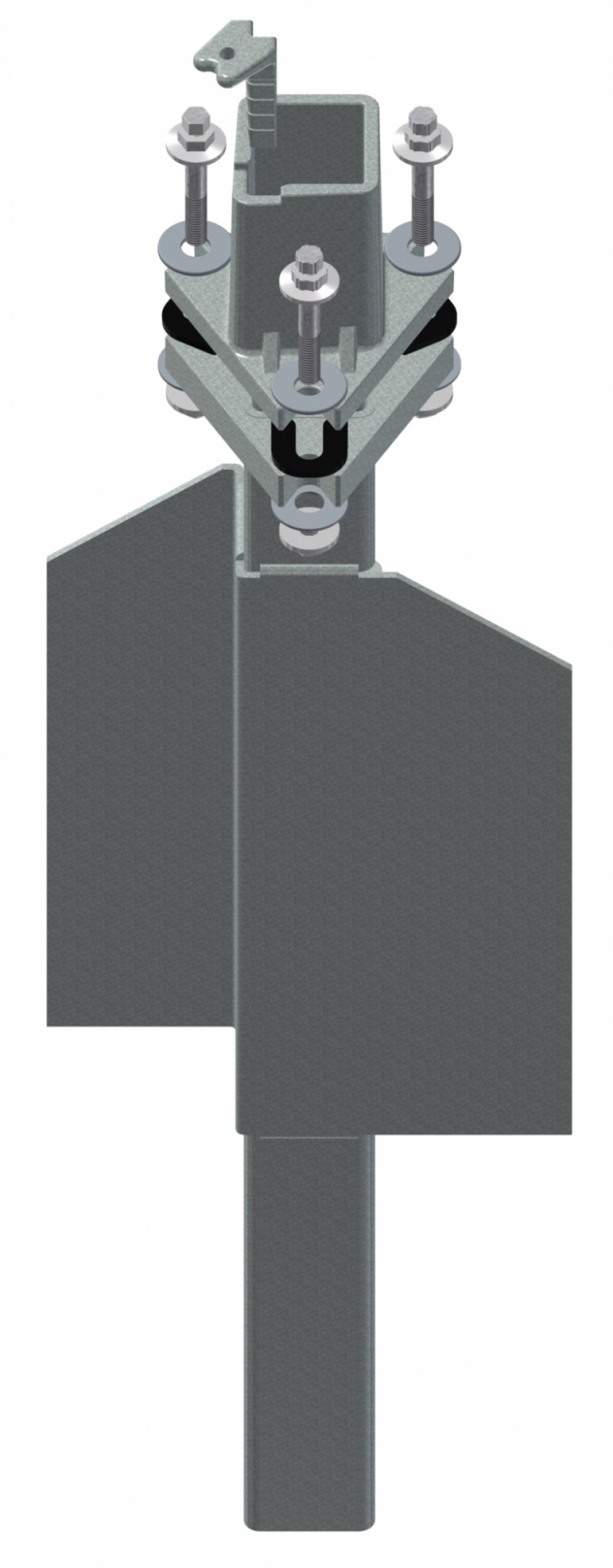

RT8 CTWA

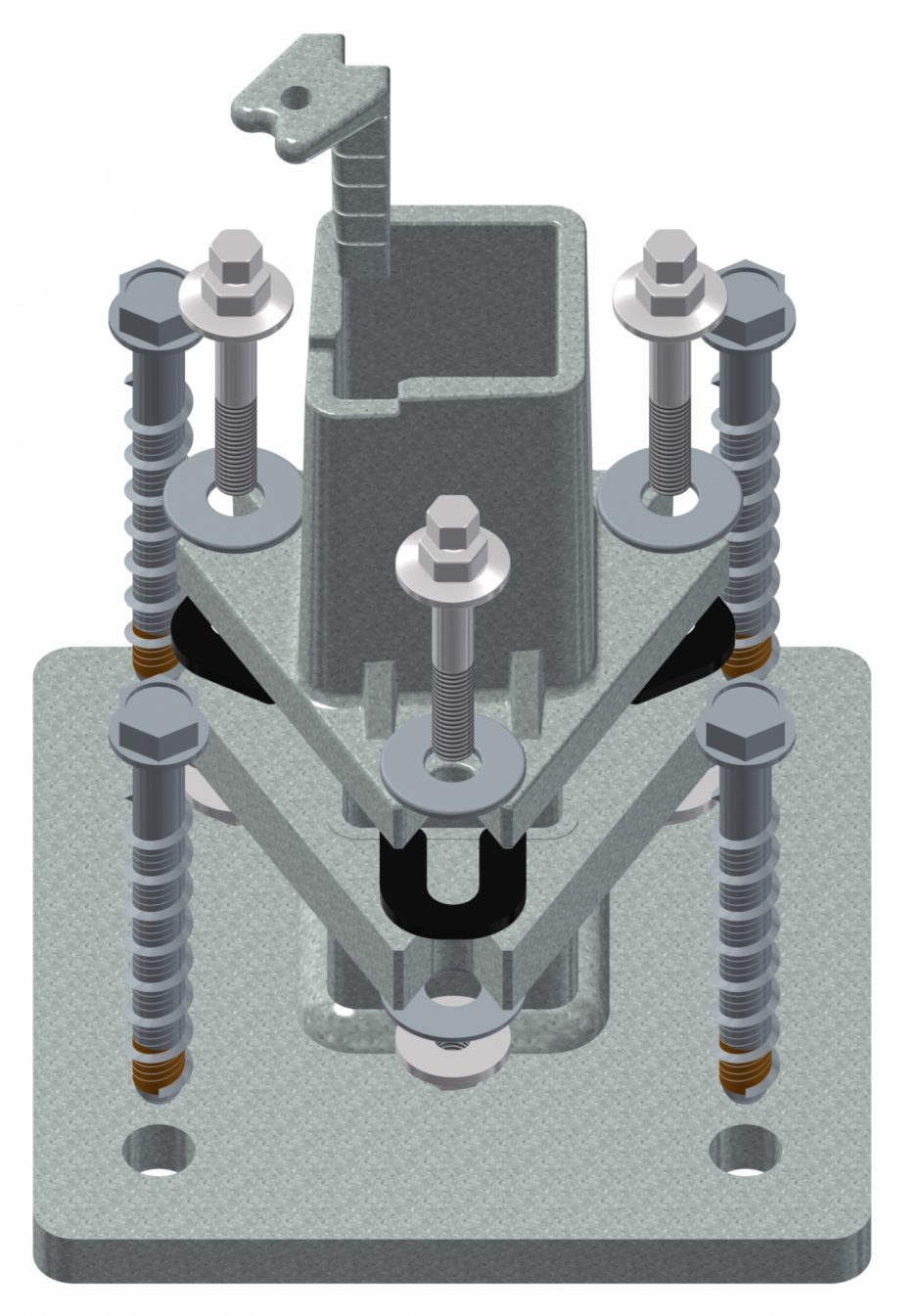

RT8 SMX

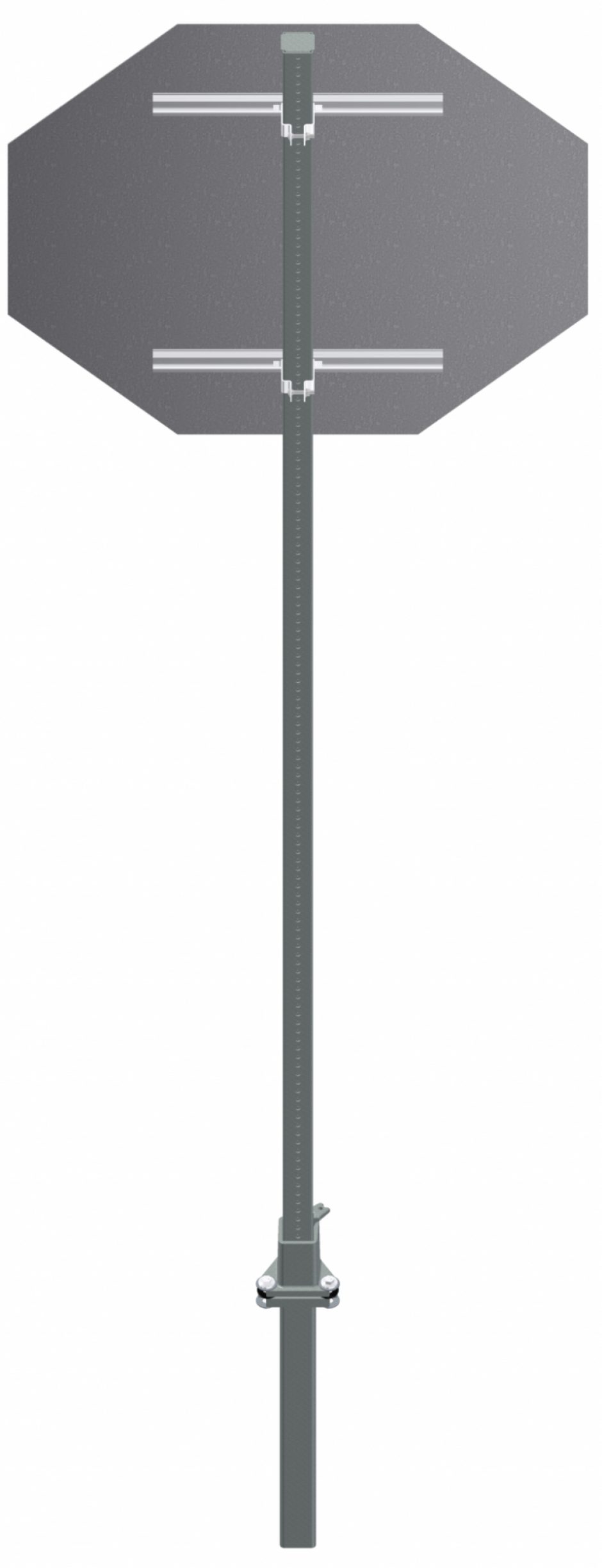

Redi Torque Model 280

Xcessories Squared manufactures several MASH-16-compliant crash-tested Redi-Torque multi-directional slip base assemblies. This system has been 0˚ and 90˚ full-matrix crash tested as a single-post assembly and 0˚ full-matrix crash tested as a multi-post assembly.

Segments

A slip base contains three segments: a top post receiver, a match-plate hardware set, and some type of anchor. The top and the bottom must have matching slip plates. We manufacture:

  • Top post receivers for 2 7⁄8” OD round posts as well as 2 1⁄2” square posts
  • The Redi-Torque match-plate hardware (does not require a torque wrench to install).
  • Unibase anchors for soil, concrete surface, and wet concrete applications.

Wind Charts

90 MPH

Centroid Height2 1/2" x 12ga. PSST2 1/2" x 10ga. PSST2 7/8" x 10ga. ROUND2 1/2" x 10ga. inserted with 2 3/16" X 10ga.
16'10.7 sq. ft.12.4 sq. ft.12.5 sq. ft.21.7 sq. ft.
14'12.3 sq. ft.14.2 sq. ft.14.3 sq. ft.24.8 sq. ft.
12'14.3 sq. ft.16.5 sq. ft.16.7 sq. ft.29.0 sq. ft.
10'17.2 sq. ft.19.8 sq. ft.20.0 sq. ft.34.7 sq. ft.
8'21.5 sq. ft.24.8 sq. ft.25.0 sq. ft.43.4 sq. ft.

120 MPH

Centroid Height2 1/2" x 12ga. PSST2 1/2" x 10ga. PSST2 7/8" x 10ga. ROUND2 1/2" x 10ga. inserted with 2 3/16" X 10ga.
16'3.6 sq. ft.5.9 sq. ft.7.0 sq. ft.12.0 sq. ft.
14'4.1 sq. ft.6.7 sq. ft.8.0 sq. ft.13.6 sq. ft.
12'4.8 sq. ft.7.8 sq. ft.9.4 sq. ft.15.9 sq. ft.
10'5.8 sq. ft.9.4 sq. ft.11.2 sq. ft.19.1 sq. ft.
8'7.2 sq. ft.11.8 sq. ft.14.1 sq. ft.23.9 sq. ft.
NOTE: The tables above are for a single post. Multiply values by 2 and 3 posts as necessary. Intersecting roads should only use a single post. Mainline roads can use multiple posts.

To get additional recommendations at different wind speeds, see the full Wind Load Capacities charts.

Product Details

Model: 280
Regulatory Compliance: MASH-16 Compliant (and Previously NCHRP 350 Compliant/FHWA Letter SS-134 & SS-175)
