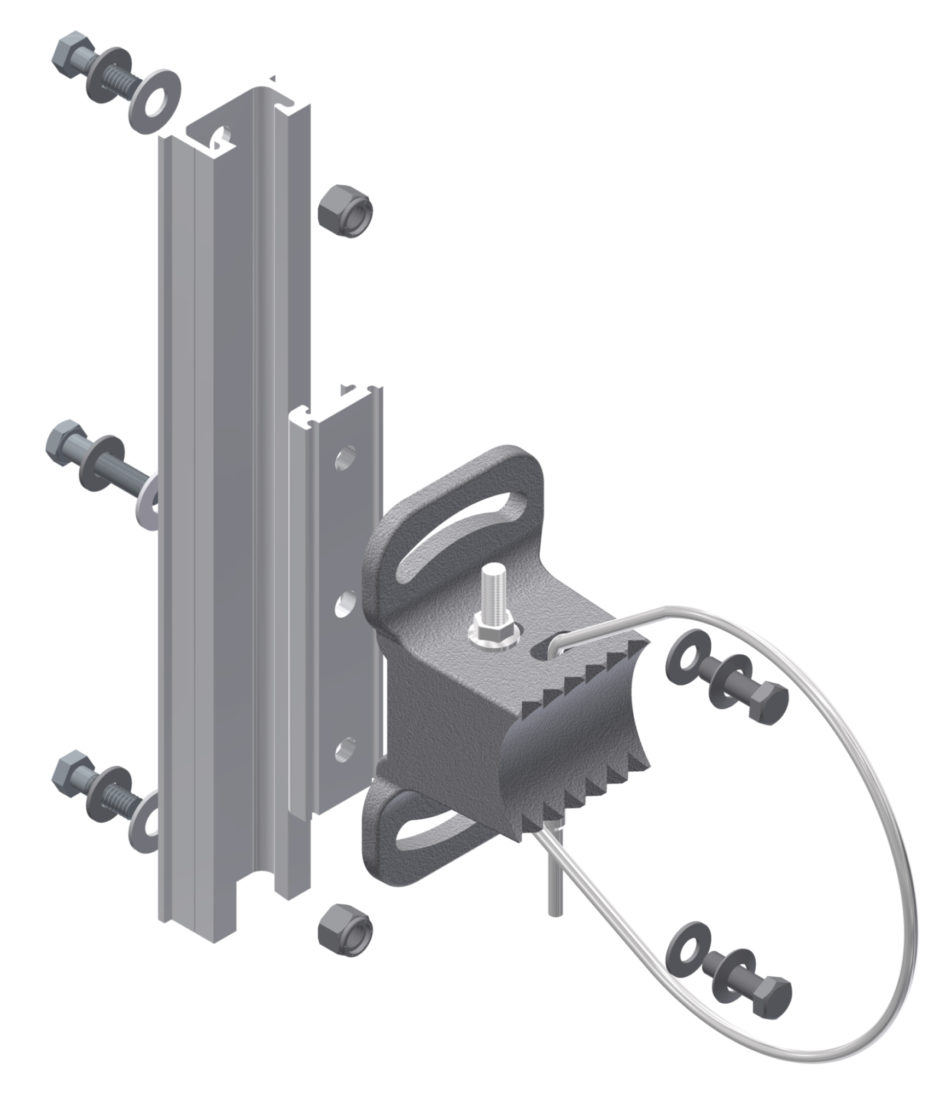

Pole Cat Bracket Assembly (X2PC30-assy)
Pole Cat Sign-Mounting Bracket
Xcessories Squared manufactures the Pole Cat, a mast arm and luminaire sign-mounting bracket system.

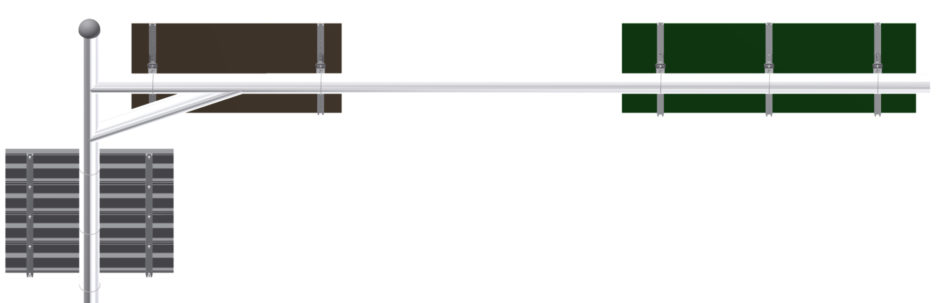

The Pole Cat can work on horizontal and vertical poles with round or flat sides. The bracket is adjustable up to 25 degrees to correct for inclined mast arms. The bracket attaches to the pole with a 3⁄16" stainless steel cable. The system can hold from 1 sq. ft. to nearly 50 sq. ft. of sign area. It works with extruded panel signs as well as flat panel signs.
Quantity Selection Table
| Sign | 1' W | 2' W | 3' W | 4' W | 5' W | 6' W | 7' W | 8' W | 9' W | 10' W | 11' W | 12' W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1' H | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| 2' H | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| 3' H | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 |
| 4' H | 2 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 4 | 5 | 5 | 6 |
| 5' H | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 5 | 6 | 6 | ||
| 6' H | 2 | 2 | 2 | 3 | 4 | 4 | 5 | 6 | 6 | |||
| 7' H | 3 | 3 | 3 | 4 | 4 | 5 | 6 | |||||
| 8' H | 3 | 3 | 3 | 4 | 5 | 6 | ||||||
| 9' H | 3 | 3 | 3 | 4 | 5 | 6 | ||||||
| 10' H | 3 | 3 | 4 | 5 | 6 |
